Trouble with Reflections

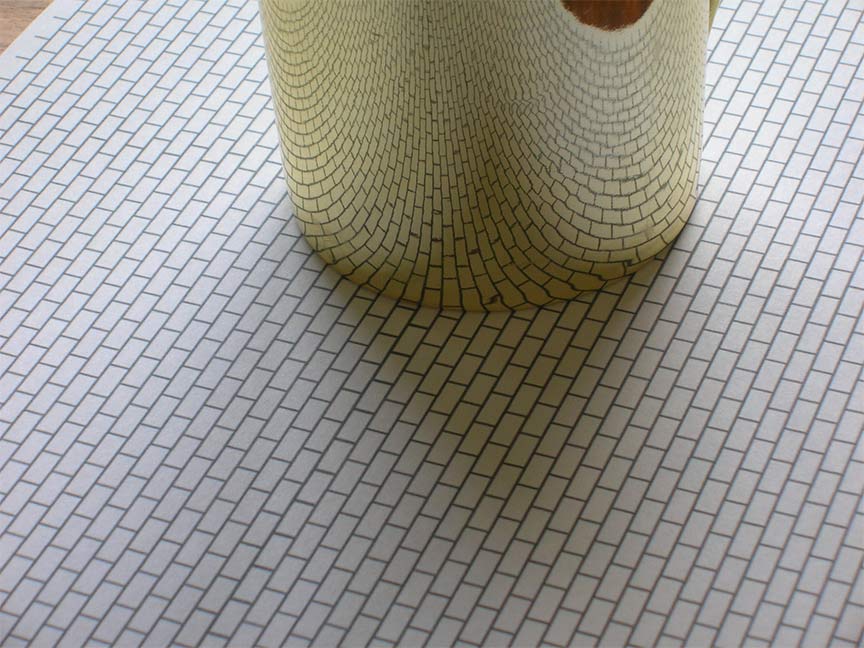

For some time I stared at the Movie Sign in the Friday Challenge and finally knew I was NEVER going to figure out what the reflections should look like. Nothing for it then but the practical method, so I found a coffee mug and printed off some brickwork on A4. See below. Now the problem was: how to cut out a crescent from the brickwork where it touches the bottom edge of the mug, flip it horzontally and and then align the facing edges. I spent a very long time using Image Warp until I got a result I am happy with. My question is this: without using any add-ons did anyone manage to solve this problem in less than 30 minutes? And if so, please share the knowledge. Thanks.




Posted on 10/09/12 08:33:26 AM
Steve Caplin
Administrator
Posts: 6822

Reply


Re: Trouble with Reflections
That's an ingenious approach, Michael! And I'm most impressed with your cylindrical silver coffee mug.

Posted on 10/09/12 08:42:06 AM
Mariner
Renaissance Mariner
Posts: 2789

Reply


Re: Trouble with Reflections
Yay!



Posted on 10/09/12 11:19:52 AM
Frank
Eager Beaver
Posts: 1563

Reply


Re: Trouble with Reflections
Nice approach on the mug --- I too knew I would never solve the refection part on the FC so I just employed a best guess approach -- and yes I pondered it for a couple of hours finally concluding just try to make it convincing as the average person would never know anyway
Frank

Posted on 10/09/12 11:44:39 AM
Nick Curtain
Model Master
Posts: 1768

Reply


Re: Trouble with Reflections
I had to attend my Godson's wedding in Bristol this weekend, so won't have a chance to do the challenge this week. I had pondered with this and my solution was going to be to hold a shiny steel saucepan against the house and see what happened. Looks like we were thinking along the same lines.

Nick

Posted on 10/09/12 12:12:52 PM
Mariner
Renaissance Mariner
Posts: 2789

Reply


Re: Trouble with Reflections
Frank, Nick.
Thankyou for your comments. Any ideas about how to produce that reflection without using image warp, or copying and pasting a brick at a time (dreary work) ?



Posted on 10/09/12 1:28:09 PM
Frank
Eager Beaver
Posts: 1563

Reply


Re: Trouble with Reflections
Mariner,
I ended up doing it brick by brick as I couldn't seem to get sections to warp properly -- the trouble is I didn't know where I wanted to go for sure - I thought of Nick's idea to photograph some curved shiny metal against a brick wall but didn't have any such material
Frank

Posted on 10/09/12 4:59:19 PM
Luis
Six-String Synthesist
Posts: 236

Reply


Re: Trouble with Reflections
I don't know if this is the correct way to create reflections. Please note that I'm using Photoshop 7.

Also, if you are using the latest version of photoshop, you can try using the 3D feature. I know nothing about this so I can't help you there. After studying you image, the thing that came to mind was using the Polar Coordinates. Here are the steps that I used.



1. Created the background image first.

2. Duplicated the background image and have that on a new layer. Then I applied the Polar Coordinates Filter - Polar to Rectangular - Then use the Transform to flip Vertical.

3. Created the Cylinder on a new layer

4.The last step was to move the layer that had the filter applied to it above the Cylinder layer and Group (clipping Mask) the layer.

Thats it.



Posted on 10/09/12 5:26:14 PM
Luis
Six-String Synthesist
Posts: 236

Reply


Re: Trouble with Reflections

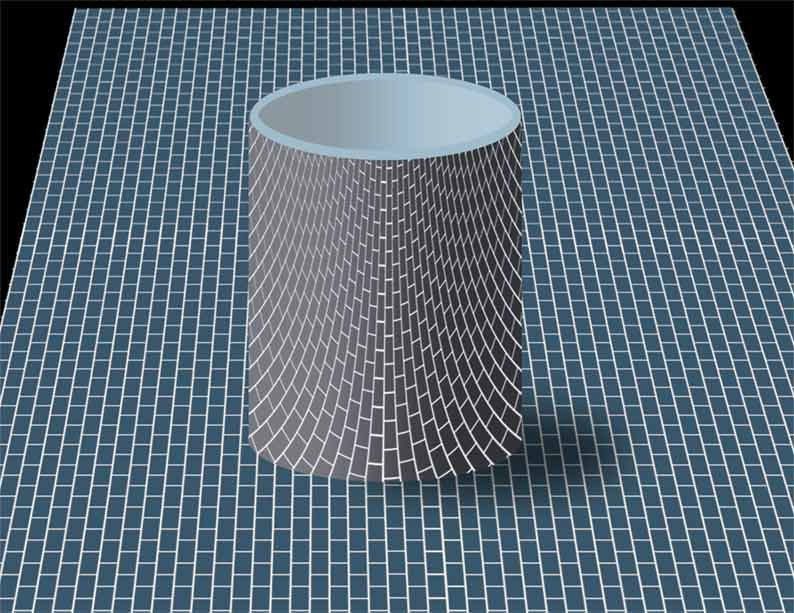

here is the same thing only using a grid to show the pattern on the Cylinder. One thing I forgot is that I scaled down the image (duplicate layer) to fit in the Cylinder





Posted on 10/09/12 6:51:25 PM
Deborah Morley
Makeover Magician
Posts: 1319

Reply


Re: Trouble with Reflections
I also used Polar Co-ordinates. Having looked at a few shiny 'cylinders' and their reflections, very few lines lined up, in fact there was only one, all the rest went their own way.
Mariner, it might be the angle you took your image from which makes your 'bricks line up. Different cylinder sizes made quite different reflections.

Posted on 11/09/12 09:06:36 AM
Mariner
Renaissance Mariner
Posts: 2789

Reply


Re: Trouble with Reflections
Luis, Deborah
Great idea. I would never have thought of Polar Coordinates

Luis, good demo, perfect result. I will experiment with that today.
Thanks to you both.


Posted on 11/09/12 09:24:38 AM
Mariner
Renaissance Mariner
Posts: 2789

Reply


Re: Trouble with Reflections
Deborah
Yes, I agree, the angle of the photograph matters. Especially at the point on the cylinder closest to the lens. The picture changes as you move around it. Tricky, isn't it? I just casually took the shot from an angle that was fairly close to the one in the Challenge and that's what came out.




Posted on 11/09/12 11:06:45 AM
tooquilos
Wizard of Oz
Posts: 2793

Reply


Re: Trouble with Reflections
Michael thank you for that info. I wish Id seen it earlier! Luis great demonstration.

_________________
Dorothy: Toto, I've a feeling we're not in Kansas anymore

Posted on 11/09/12 1:59:04 PM
Mariner
Renaissance Mariner
Posts: 2789

Reply


Re: Trouble with Reflections
You're welcome Anna. I couldn't resist trying out Luis's brilliant solution, so here's one I put together this afternoon.
